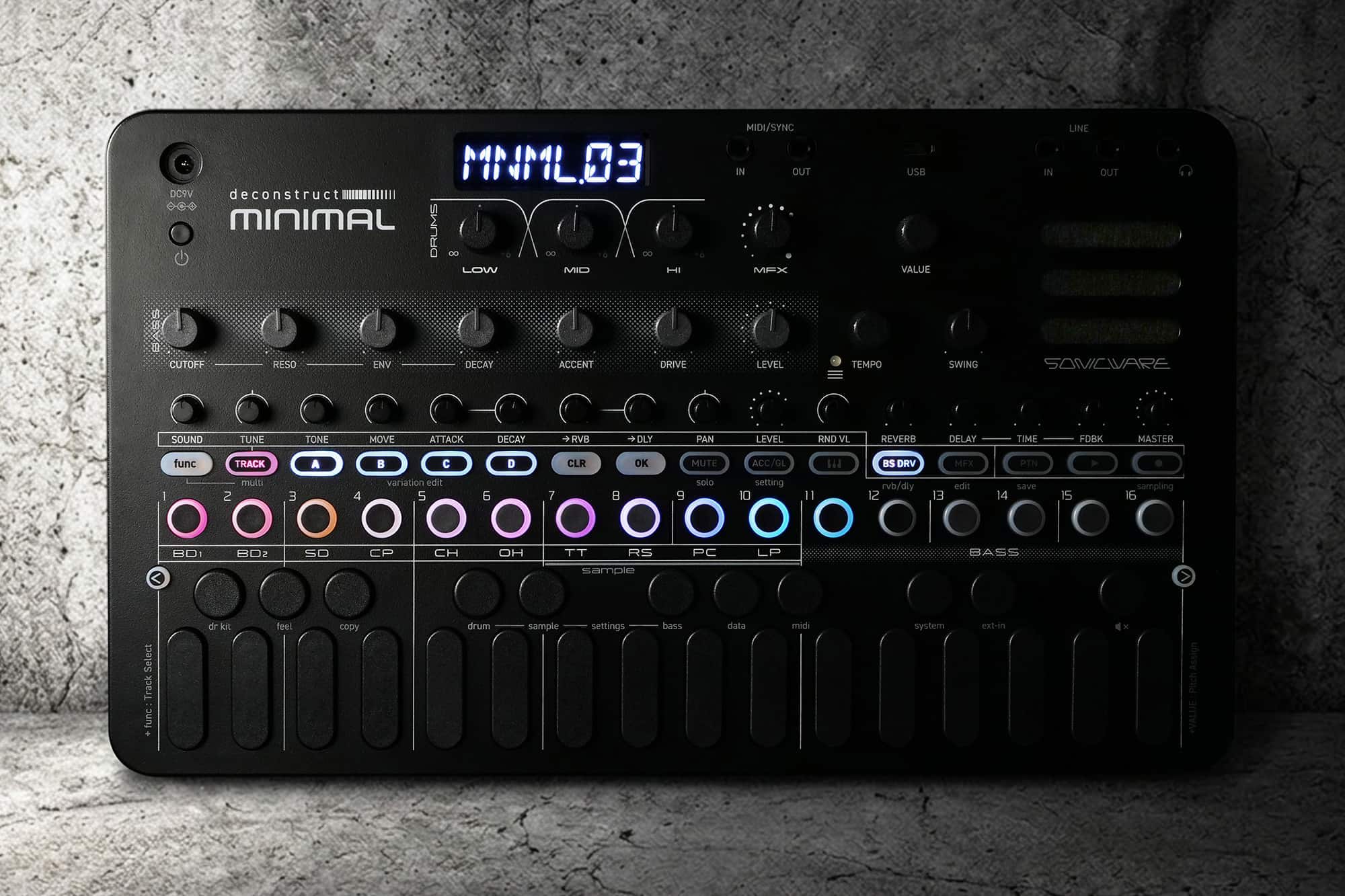

Hypnotic Groove Machine
● Legendary Groove DNA
Built on the rhythmic and pitch drift of the legendary drum machines — designed to create hypnotic minimal grooves
● Deep 10-Track Drum Machine
Intuitive, deep groove editing with fully per-track accents, random velocity, swing, sub-steps, and phrase rotation
● Sonic Expansion Sampler
Drum machine–integrated 4-track sampler with a 4-bar loop track — beyond drums through textures and phrases
● Elastic Bass Synth
Fluid analog-modeling bass synth delivering acid bass lines and driving techno leads
● Live-Boosting Effects
Live-focused real-time effects for dynamic groove control and performance intensity
Legendary Groove DNA
The legendary 808 and 909 drum machines laid the foundation for techno and house music.
These historic machines produced their distinctive groove through subtle fluctuations and quirks originating from their sequencers and sound-generation circuits.
The 808 exhibits timing fluctuations, along with subtle variations in the response and pitch of its analog sound engine. The 909, while maintaining tight timing, exhibits subtle variations in velocity and other VCA-driven characteristics.

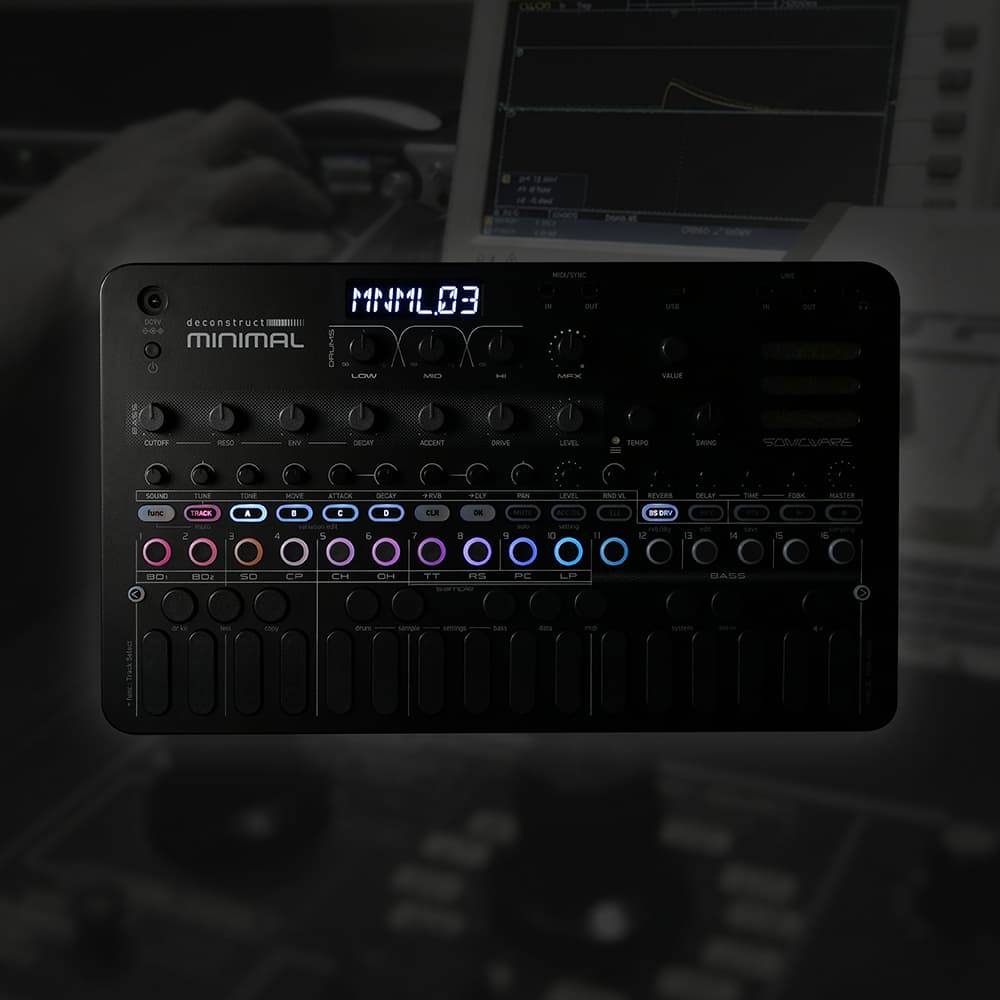

We analyzed these fluctuations and variations, then reconstructed them as a system of complex modulations operating throughout the sequencer and sound engine. By applying different forms of randomization to individual tracks and sounds, we create a distinctive groove that cannot be achieved through simple swing or groove quantization.
Lose yourself in the profound groove shaped by mesmerizing repetition and gradual transformation.

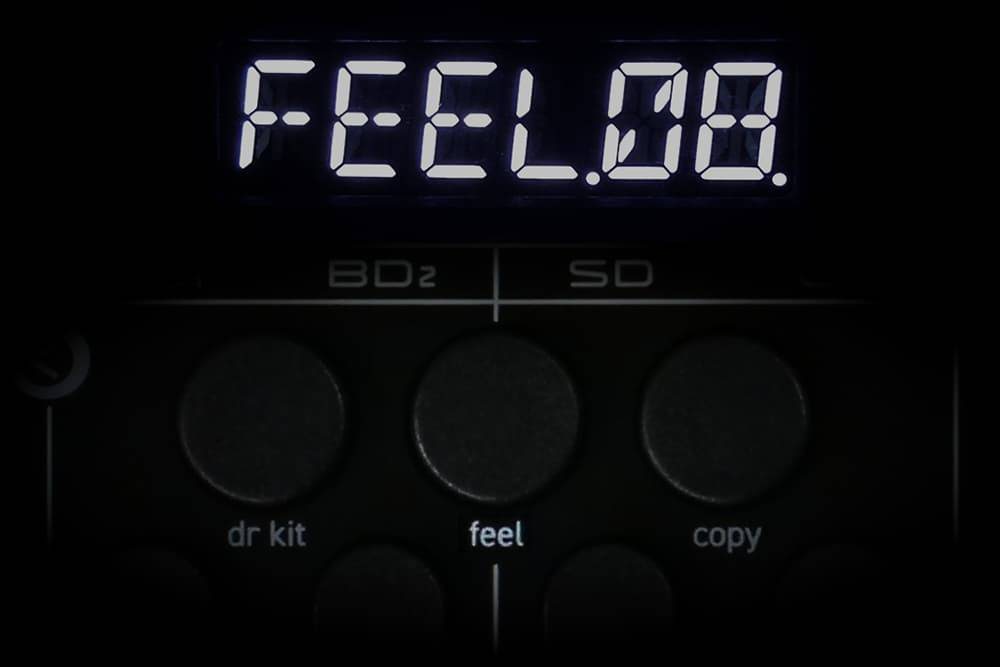

Three groove types available via the FEEL function.
FEEL08: An open rhythm feel with dramatic HiHats pitch fluctuations and subtle Clap and Snare transient offsets.
FEEL09: A driving rhythm feel with tight timing, subtle offsets, and velocity randomization across instruments.
FEEL.MN: MINIMAL’s own groove, combining 08-inspired pitch fluctuations and 09-inspired offsets into an aggressive, undulating feel.
Deep 10-Track Drum Machine

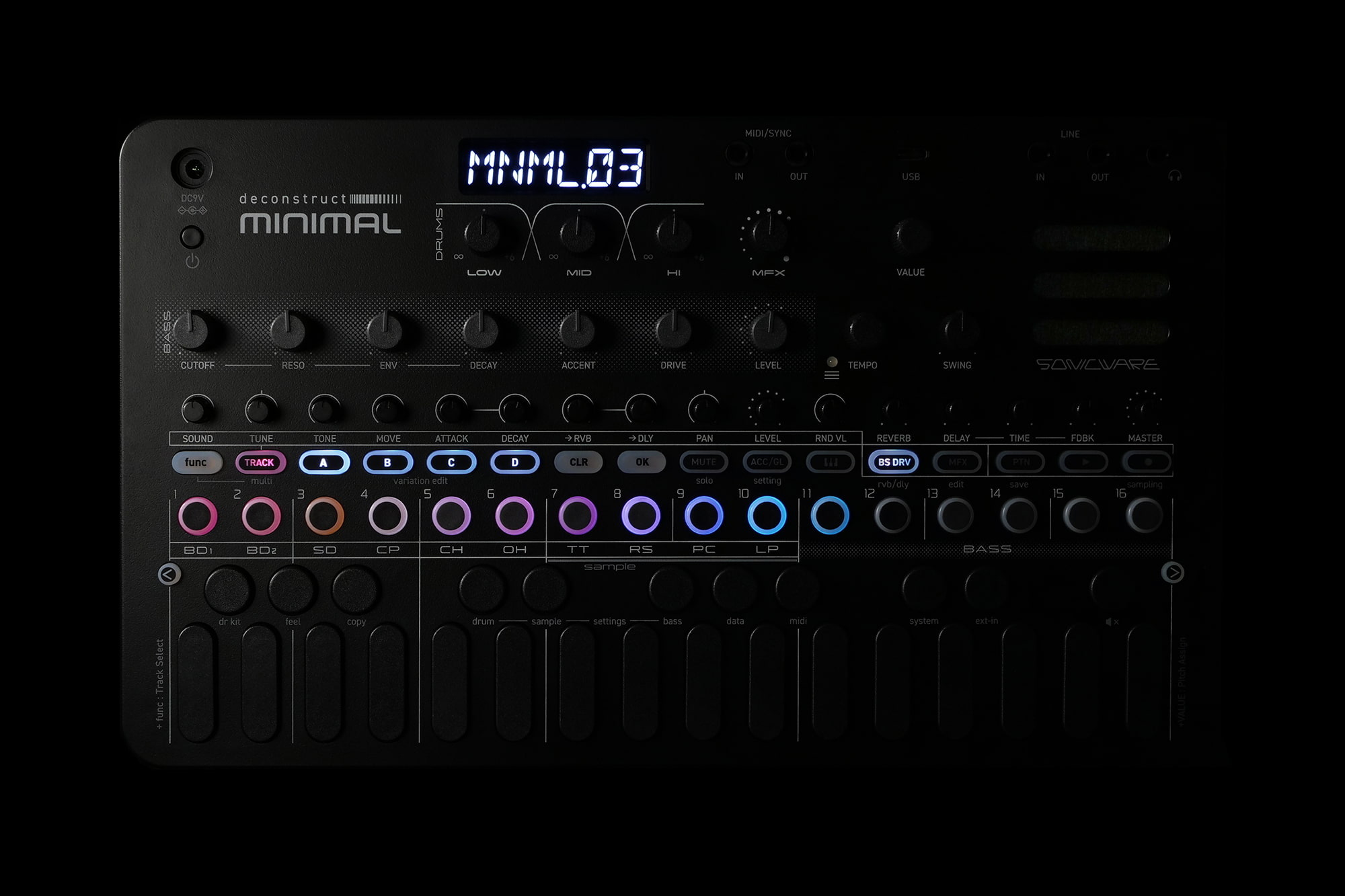

deconstruct MINIMAL is driven by its 10-track drum machine, offering intuitive and flexible editing for both sound and groove.
Per-track accents/de-accents, random velocity, swing, sub-steps, and parameter locks that capture knob movements combine to create deep, intricately layered grooves that feel alive.
Editable sample-based sound engine. BD1 and SD feature new synthesis for flexible sound shaping.

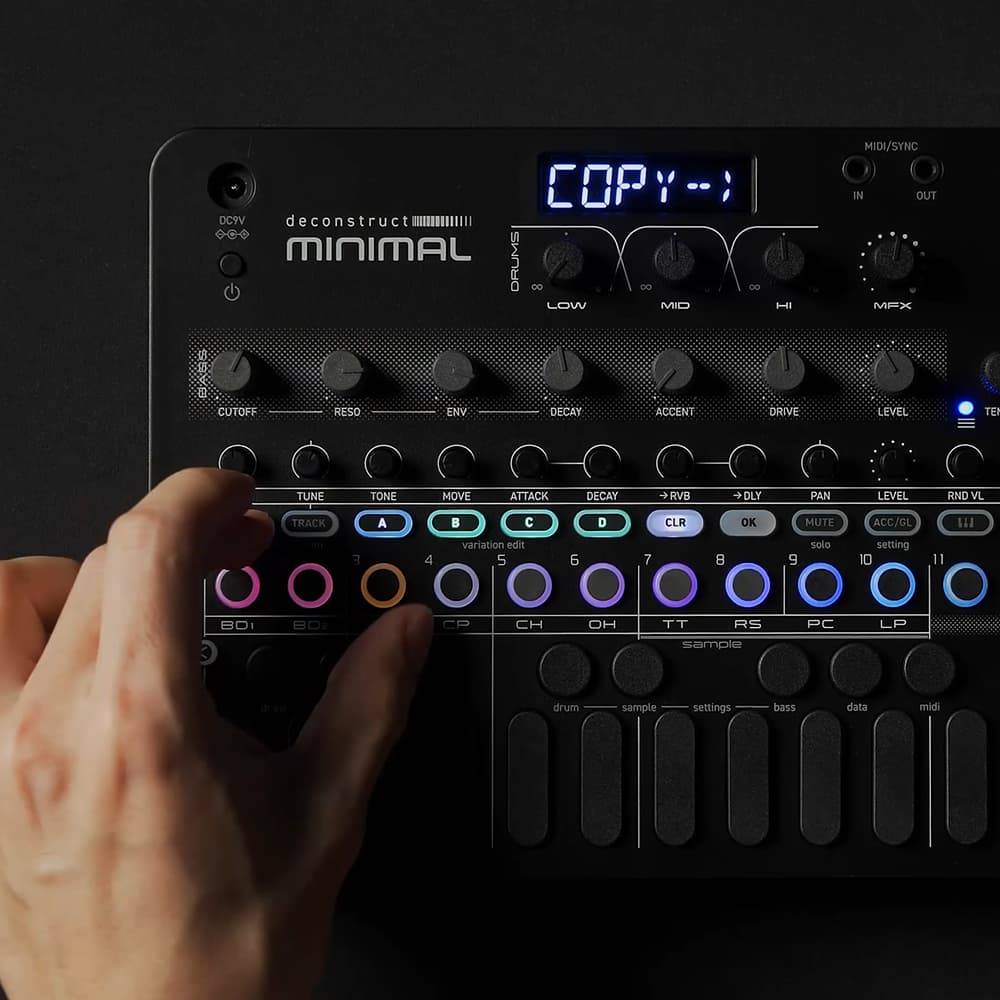

Build up rhythms easily and intuitively with step input and real-time recording.
Freely chain A, B, C, D variations, with insert fill playback.
Sonic Expansion Sampler

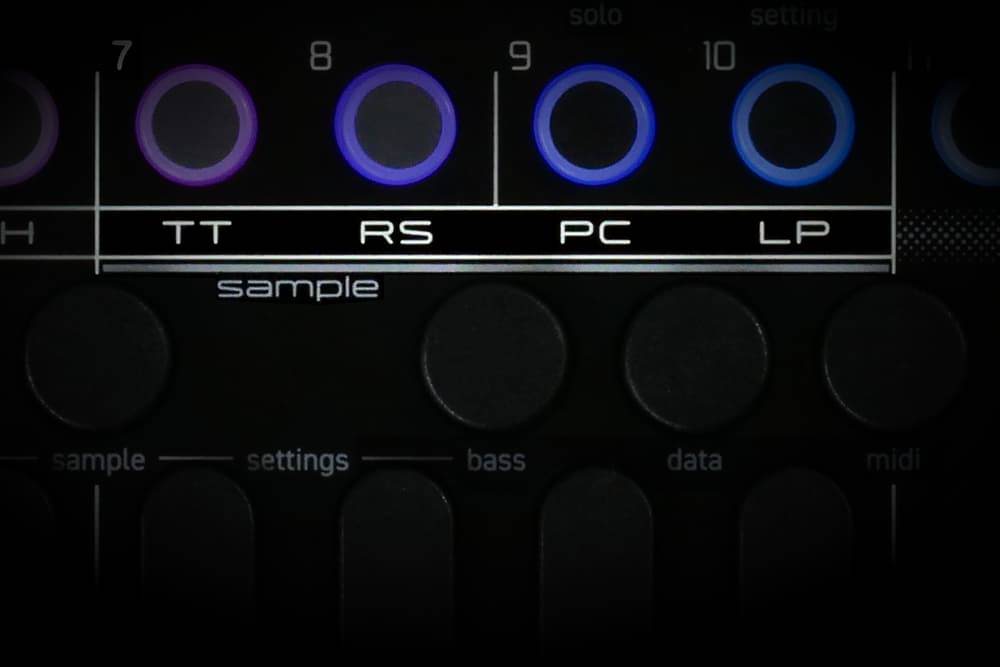

deconstruct MINIMAL’s drum machine features a dedicated loop sampler on track 10, with tracks 7–9 also functioning as three sampler tracks.
Load one-shot samples or capture loops and phrases, then weave them directly into your rhythm.
Track 10 is a dedicated stereo loop track supporting up to 8 seconds — ideal for 4-bar phrase loops or atmospheric textures that add new layers and depth to your tracks.
2 or 4 sec mono samples (48kHz/16-bit) with Repitch to Tempo.
8 sec stereo samples (48kHz/16-bit)
with Real-time Stretch.

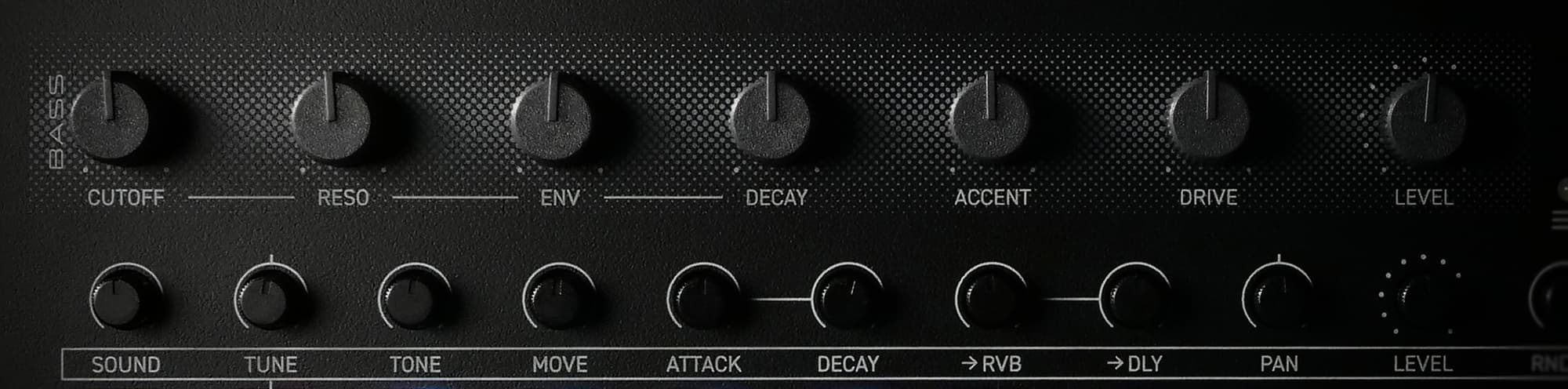

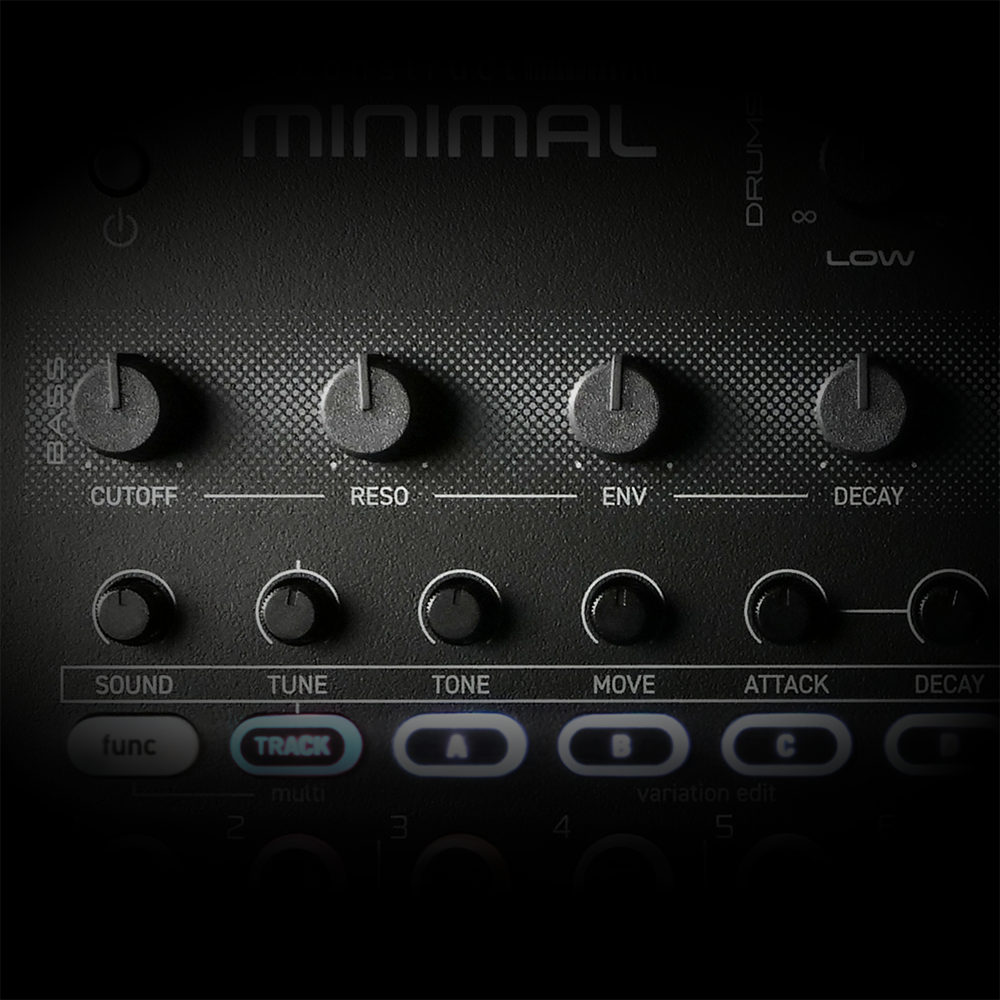

Elastic Bass Synth
deconstruct MINIMAL introduces a newly developed analog-modeling bass synth inspired by the distinctive character of a classic bass synthesizer.
With additional waveforms, a sub-bass and dedicated overdrive, plus real-time control over glide (slide) time and curve, decay curve, and gate time, it offers extensive shaping possibilities.
From foundational bass sounds that anchor the bottom of a track to synth leads and phrases, it generates the key sounds that drive the groove.
Alternate Synth Mode: S01, evoking a classic monophonic analog synth, selectable in SOUND.
Parameter locks and phrase rotation open up endless phrase expression.
Live-Boosting Effects

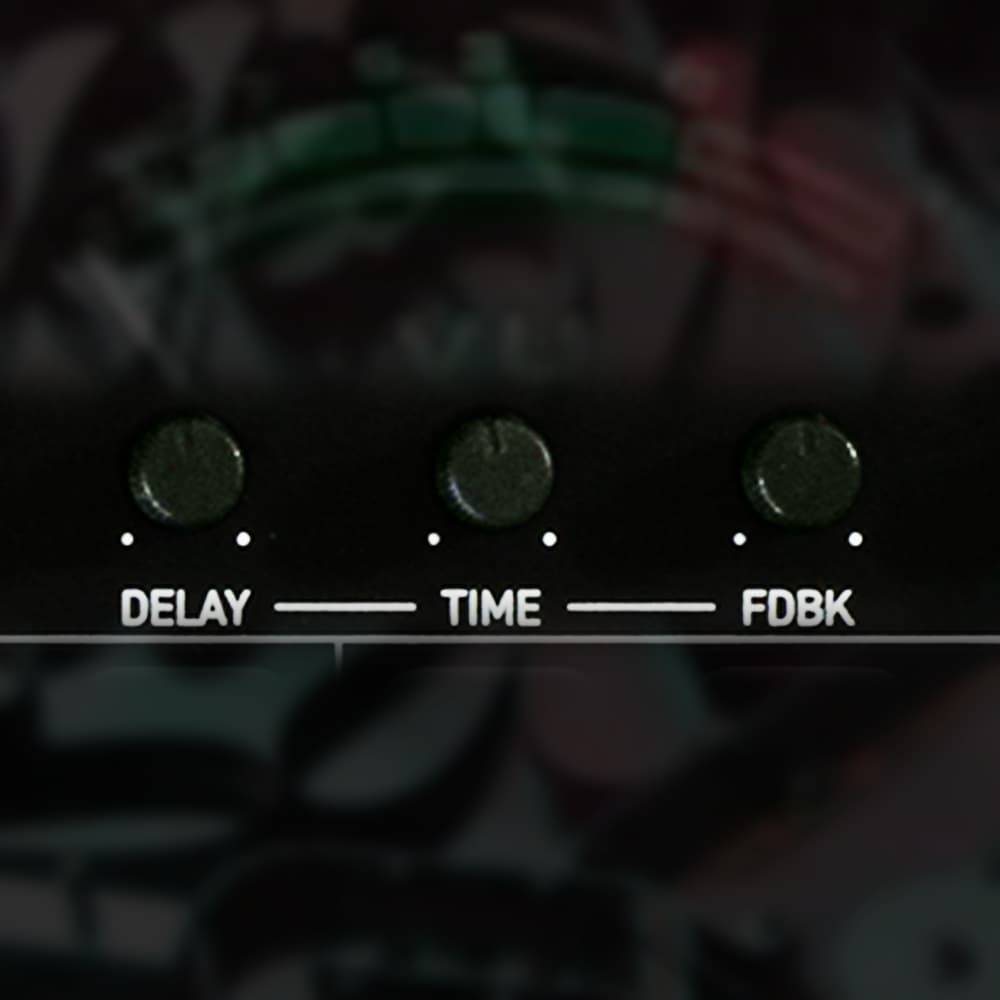

deconstruct MINIMAL packs a wide range of effects, including Reverb and Tape-echo–type Delay with per-track send control.

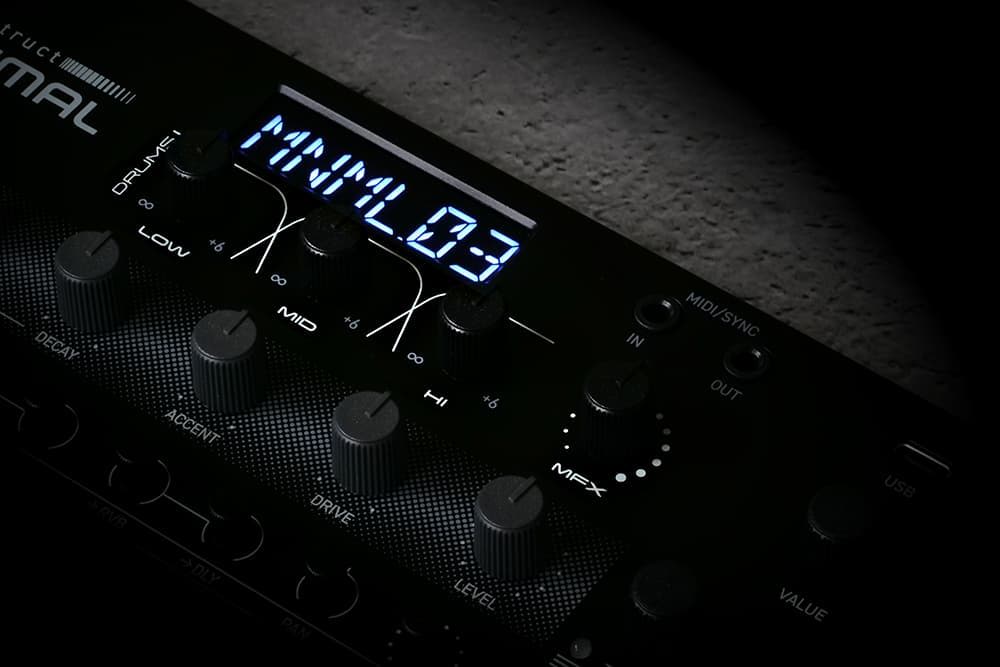

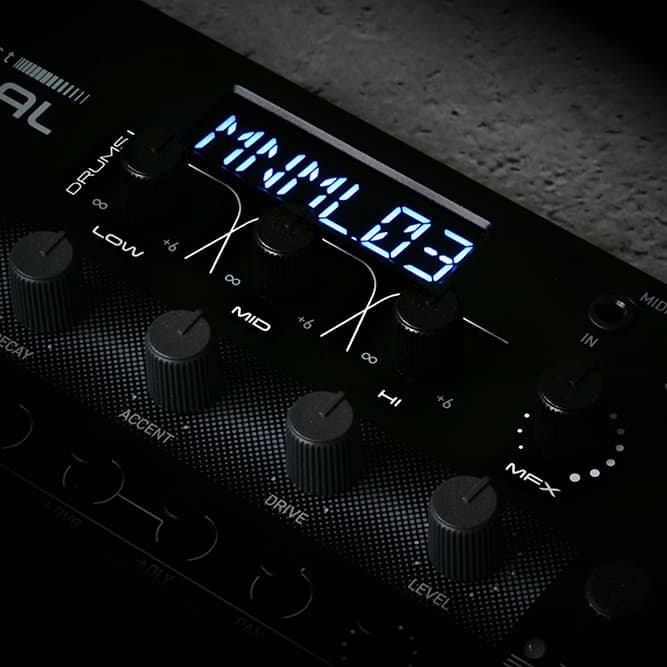

The drum-track–dedicated Isolator at the top enables everything from bold low-end boosts and cuts to precise tonal shaping, giving you immediate control over the sound.
To its right is a master effect control designed for fast one-handed operation and high-impact live performance — DJ-style Sweep Filter, Phaser, Distortion, Snip Loop, and Ducking Comp.

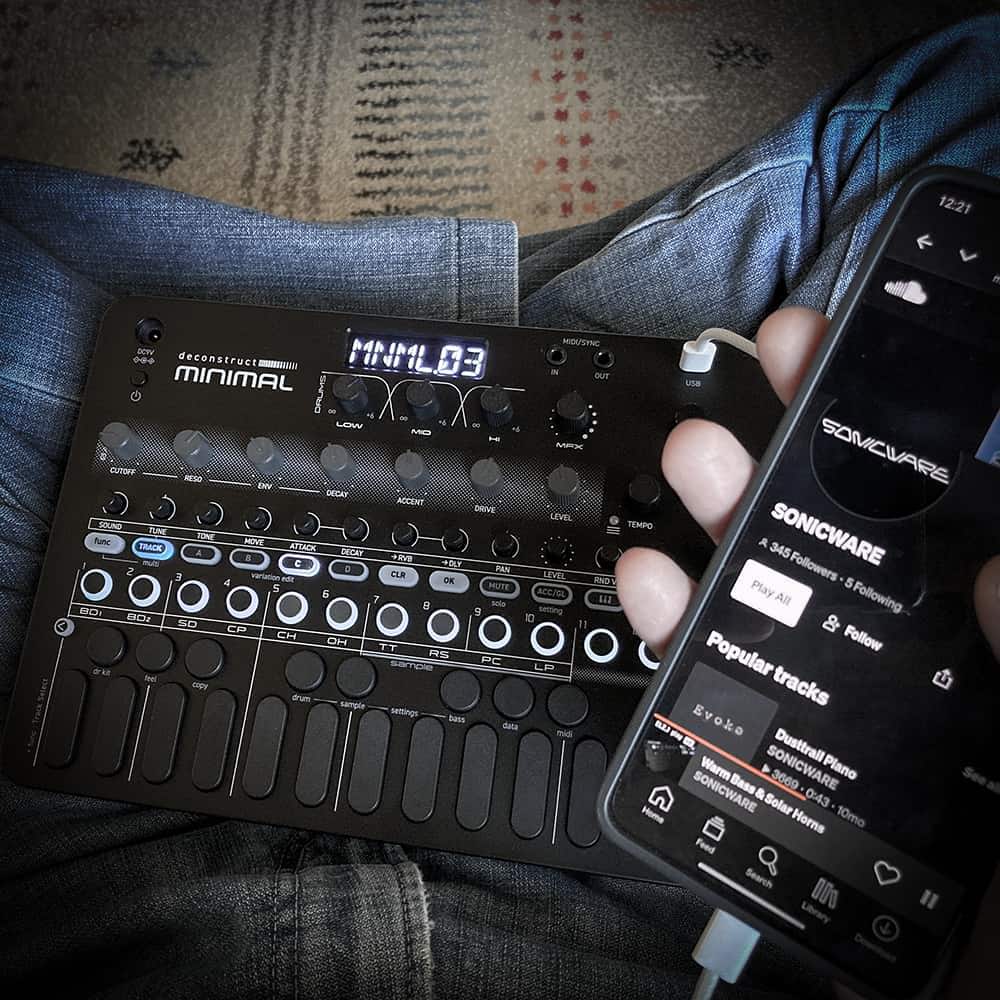

Minimal Space. Maximum Groove.
Step away from full studio setups and create in a simpler space.

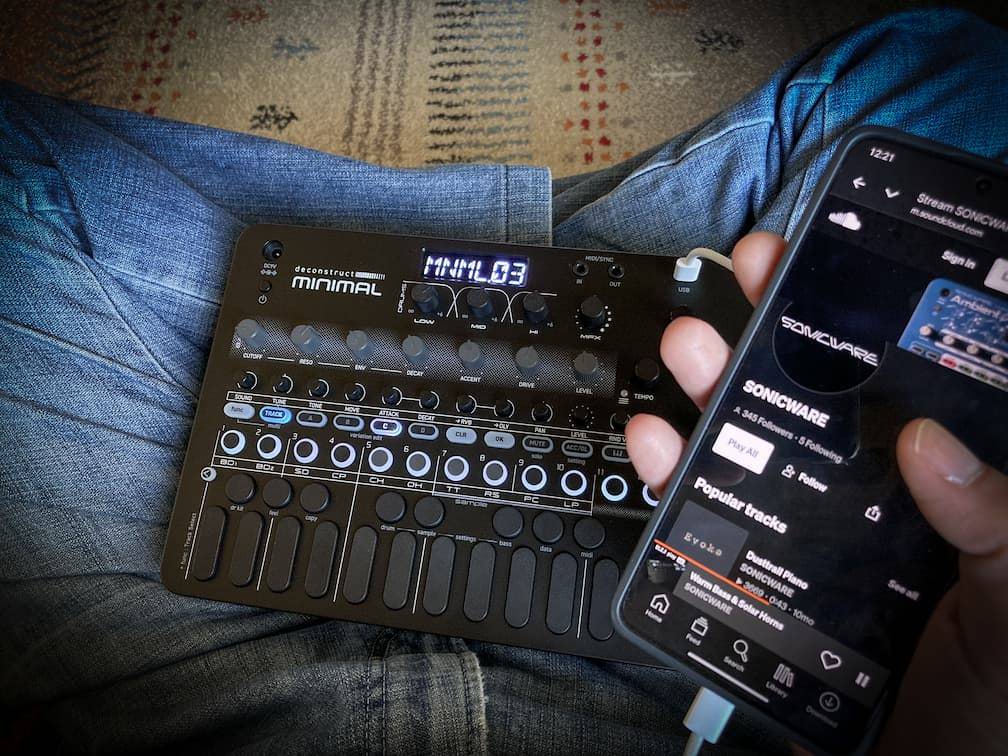

With its compact design, built-in speaker, and battery power, deconstruct MINIMAL lets you focus entirely on shaping the groove wherever inspiration strikes.
Strip your setup down to the essentials and immerse yourself in the hypnotic groove of minimal.
Inject Groove Into Any Setup
Bring deconstruct MINIMAL into your studio as a groovebox or drum machine that injects movement and momentum into your tracks.
The tactile interaction of knobs and buttons generates deep, living grooves that precise DAW programming alone can’t easily produce.

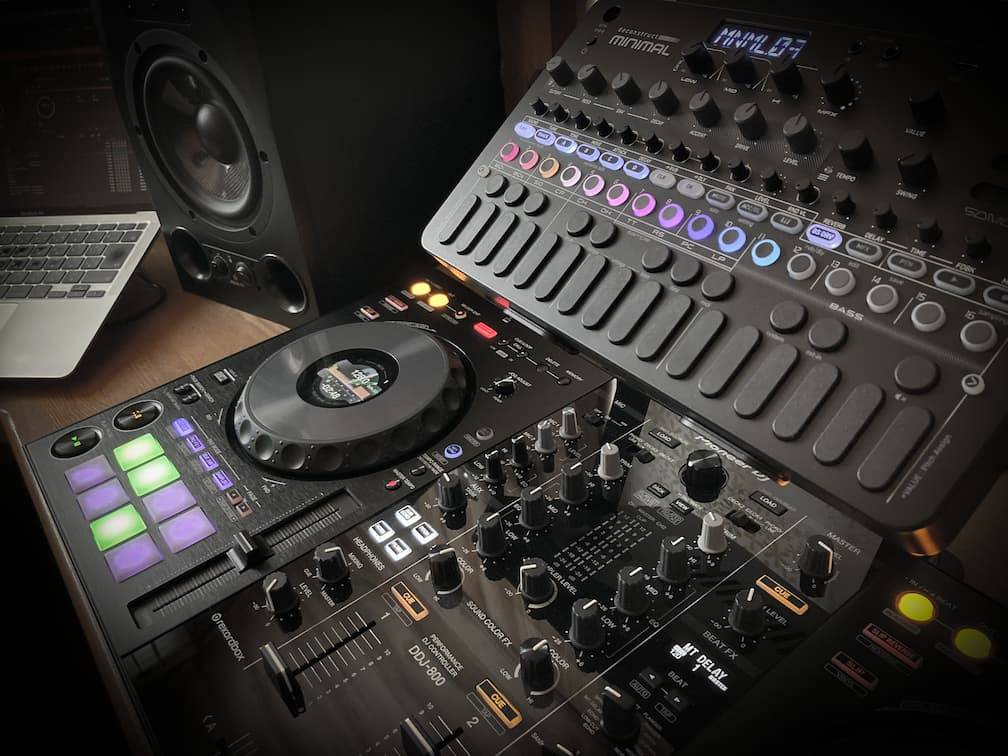

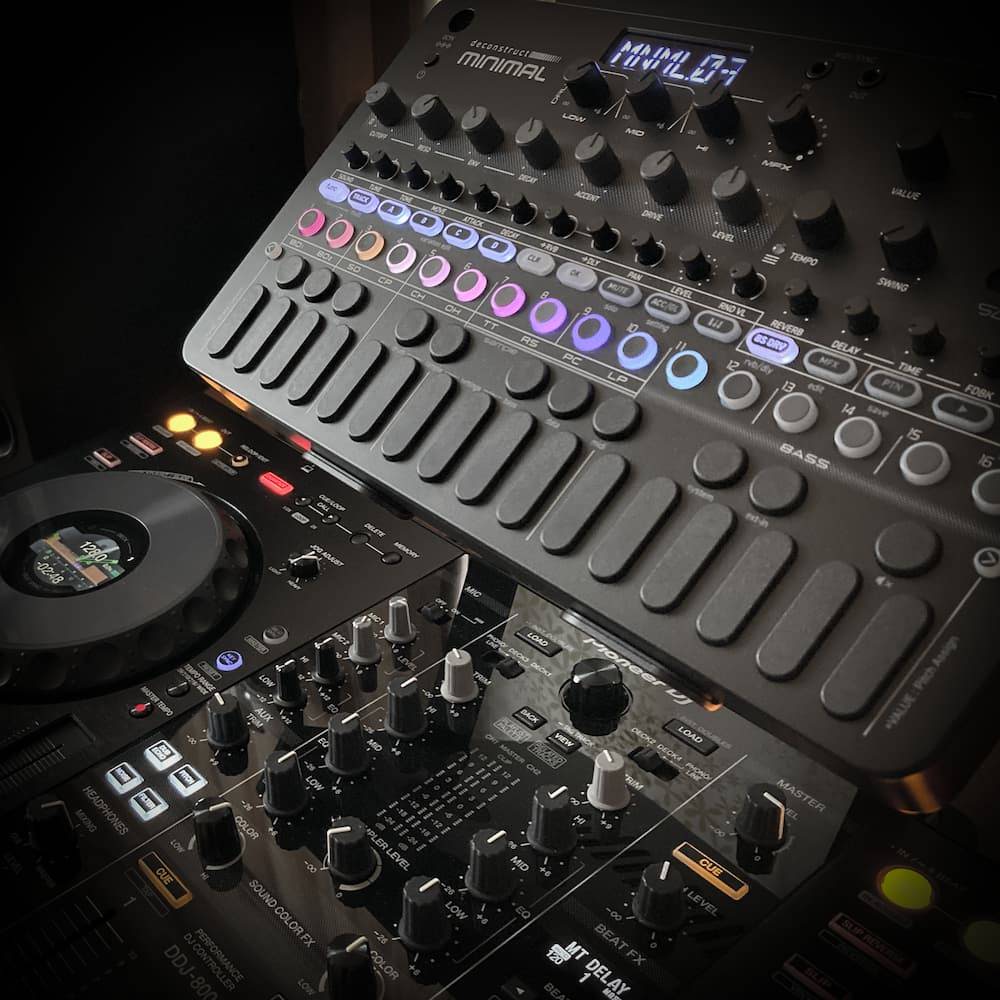

It also serves as a powerful centerpiece for dawless rigs or as a third sound source alongside decks in DJ performances.
See for yourself
Online Manual
Specifications
Drum machine with sampler and bass synthesizer featuring 11-track construction
[Drum Machine]
• Recreates the distinctive groove of legendary drum machines, shaped by subtle rhythmic and pitch drift
• 9 tracks
• 16 drum kits
• Instruments: 10 banks - 130 sounds
• Sample-based engine with dedicated edit parameters for each bank
• BD1 and SD each feature dedicated synthesis engines
• HH recreates the characteristic sound variations of analog drum machines
• Diverse groove edits: Accent, random velocity, swing, sub-steps, etc. can be set per track
• Supports real-time recording via pads, alongside fast step input
• Equipped with an isolator for bold boosts/cuts and delicate tonal adjustment
[Sampler]
• Supports sample import/export and sampling via LINE IN or USB
• 4 tracks: sample selection on drum machine tracks 7–9, plus dedicated loop track 10
• Preset samples: 3 banks - 48 sounds
<Track 7–9>
• S2 bank: 32 slots (2-second mono samples)
• S4 bank: 16 slots (4-second mono samples)
• 48kHz / 16-bit linear PCM mono sampling
• Equipped with Repitch To Tempo to make samples follow the tempo
<Track 10>
• S8 bank: 12 slots (8-second stereo samples)
• 48kHz / 16-bit linear PCM stereo sampling
• Switchable loop / one-shot playback with crossfade setting
• Equipped with Time Stretch to match tempo or pitch without changing sample length
• During loop playback, 1–4 second crossfades and retrigger position can be set
[Bass Synthesizer]
• Newly developed analog-modeling engine based on the classic bass synthesizer
• 1 track
• 4 modeled waveforms + alternate synth mode
• Models an acid-style ladder filter
<Oscillator>
• SAW
• SQUARE
• TRIANGLE
• RECTANGLE
• Sine-wave sub oscillator for low-end reinforcement (range: -2, -1, UNISON; filter/send bypass)
• S01 mode: adjustable blend between SAW and SQUARE, with a rectangle-wave sub oscillator
<Filter>
• 4-pole low-pass filter with resonance
• Envelope amount
<Envelope generator>
• Decay (linked to the amp envelope in S01 mode)
• Decay curve adjustment
<Voice mode>
• Monophonic
• Step-input glide, with adjustable glide time and curve
• Filter-linked accent
• Adjustable gate time
• Built-in overdrive effect
[Sequencer]
• 11 tracks
• 16 steps x 4 variations (up to 64 steps by chaining A, B, C, and D)
• 128 patterns
• Step length: 1–16, Note length: 1/1 to 1/32 (can be set per track)
• Real-time & step recording
• Diverse mute functions and solo mode
• Insert-fill playback of variations
• Variation copy & paste
• Phrase rotation for shifting patterns and phrases
• Parameter Lock to record knob movements per step
• Pattern chain function
• Pattern BPM / Global BPM settings are available
• Transpose function
[Effects]
5 types of performance-oriented master effects
• Sweep Filter
• Phaser
• Distortion
• Snip Loop
• Ducking Compressor
3 types of send reverb
• Room
• Hall
• Plate
Tape-echo style send delay with BPM sync and ping-pong
[MIDI]
• Notes, Control Change, and Clock input/output
[Unit]
Matte black body finish
<Pad/Keyboard>
• 27
<Knobs>
• 12 control knobs
• 2 encoders
• 16 micro knobs
* Includes SCALE, which automatically aligns knob position and parameter value; LATCH, which does not change the value until the current value is reached; and JUMP.
<Audio in>
• LINE IN (stereo mini jack)
• USB (USB audio interface function can be disabled)
<Audio out>
• LINE OUT (stereo mini jack)
• USB (USB audio interface function can be disabled)
• Headphone out (stereo mini jack)
• Built-in speaker
<Interfaces>
• USB-C: Data transfer, MIDI/audio communication (USB audio interface function can be disabled)
• MIDI/SYNC IN jack (3.5mm stereo mini jack)
• MIDI/SYNC OUT jack (3.5mm stereo mini jack)
<Size>
297mm (W) x 176mm (D) x 48mm (H)
11.7 in (W) x 6.92 in (D) x 1.89 in (H)
<Weight>
840g
1.85lb
<Power supply>
• 9V DC output AC adapter (1A or higher, EIAJ-3 standard, inner diameter 1.7mm, outer diameter 4.75mm, center-positive)
• 6 AA batteries
*AC adapter and batteries are not included. Please use the LIVEN 9V Power Supply Unit.
[Accessories]

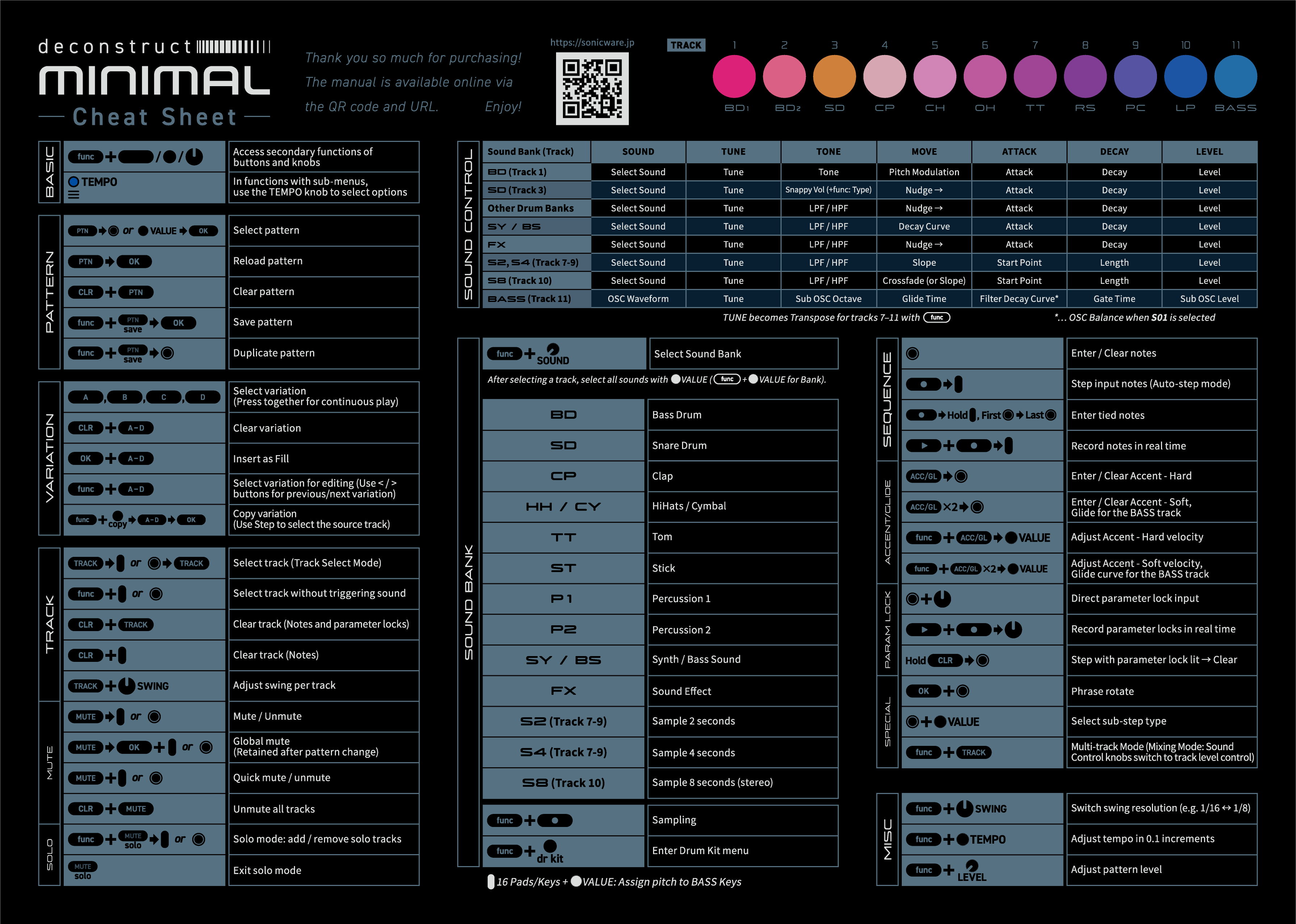

• Cheat Sheet / Warranty
[Optional Accessories]
• 3.5mm TRS To MIDI Adapter
• Micro Knob Caps
